Name of project：TK65 oscilloscope pump type precise blood pressure electrocardiogram Bluetooth communication smart health watch

Product size: 270 * 39 * 13MM (length, width, height)
CPU: JL7012A6
Blood oxygen: Osram SFH2703+GH3220T
PPG chip: Osram SFH2703+GH3220T
Air pressure sensor: Nonlinear high precision air pressure sensor
Temperature sensor: Contact type NTC temperature sensor
Blood pressure type: Oscillographic pump+airbag type true blood pressure
LCD: 1.43-inch AMOLED high-resolution 466 * 466
Control method: Full screen touch control, mobile app control
BT: 5.3BLE (low power consumption)
Motor: Support
Charging method: Magnetic charging (with short circuit protection)
Water proof: IP67 waterproof
Battery capacity: 530mAh high-density polymer lithium battery
“Appearance Material: Shell: Metal alloy
Bottom shell: PC+ABS+medical grade high-performance conductive glass
Strap: Eco friendly silicone
Airbag: Environmentally friendly TPU material”

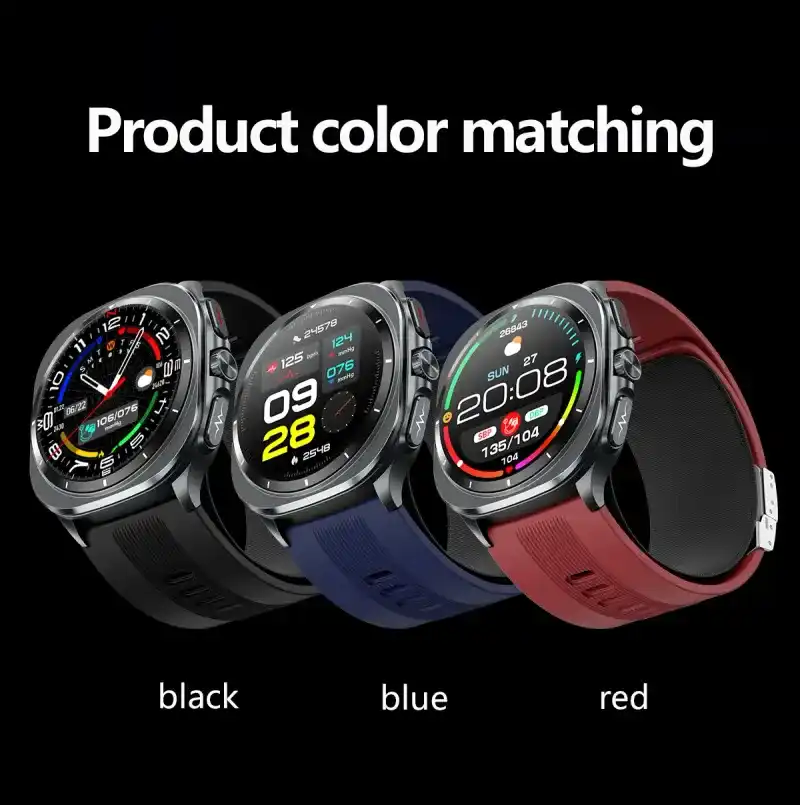

“Product color scheme: Subject: Black
Wristband: Silicone Black, Silicone Blue, Silicone Red”
Dial selection: App multiple dial options
Remote control music: Control the phone player to pause the previous and next songs
APP: Healthwear
OTA upgrade: Support
APP System: Android 8.0 and above, iOS 11.0 and above

Major function:

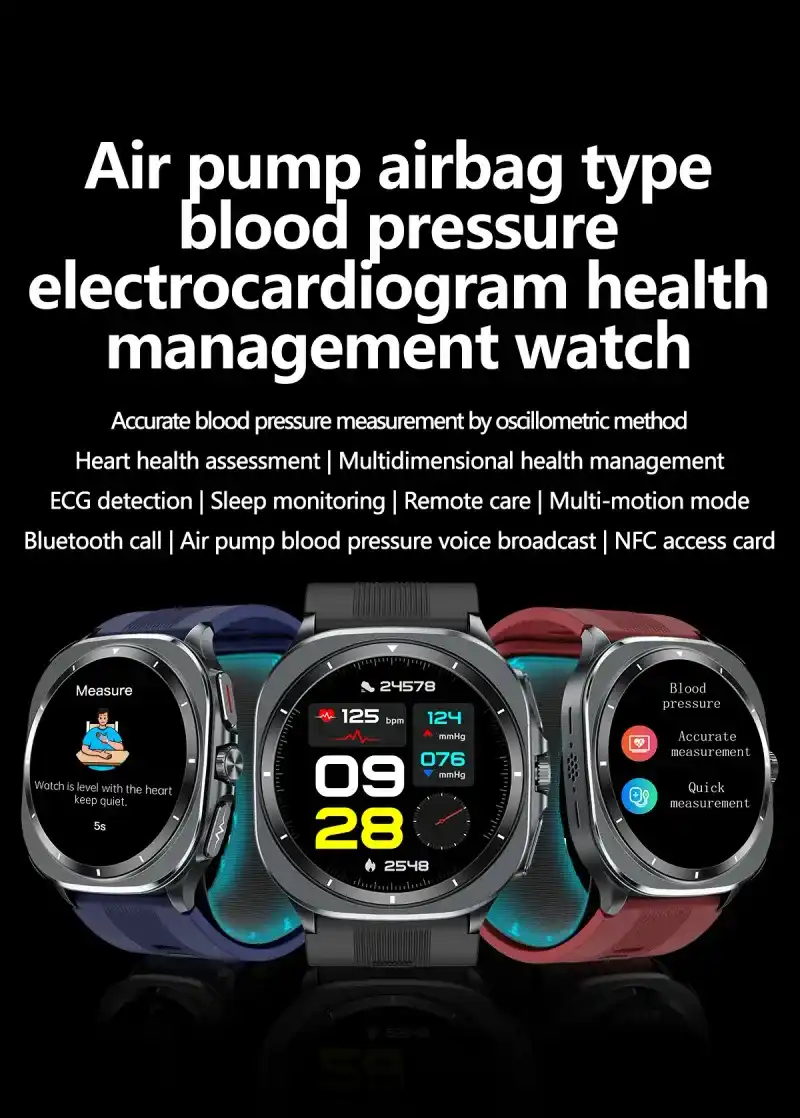

1. Air pump+airbag based accurate blood pressure testing, blood pressure voice broadcast, TPU ultra-thin comfortable airbag (detachable)
2. Electrocardiogram nano glass,ECG electrocardiogram, AI intelligent diagnosis
3. 1.43-inch 466 * 466 AMOLED Retina Full Touch Screen
4. Bluetooth call, SOS one click distress, NFC access control
5. Health management functions such as blood glucose, uric acid, blood lipids, heart rate, body temperature, blood oxygen, respiratory training, real-time sleep monitoring, sedentary reminder, etc
6. Sports function: Step counting/Calories/Distance, Multi sport mode
7. Remote care function for family and friends
8. Switching between multiple watch faces in the APP market
9.530mAh high density polymer lithium battery, a single charge using life of 5 days – 10 days
